Docker Mini-QR

Mini QR is a customizable QR code generator to create beautiful and unique QR codes. You can easily customize colours and styles and save the QR code in a SVG or PNG image

Step 1

Install container manager, If you have already installed the manager jump to step 3

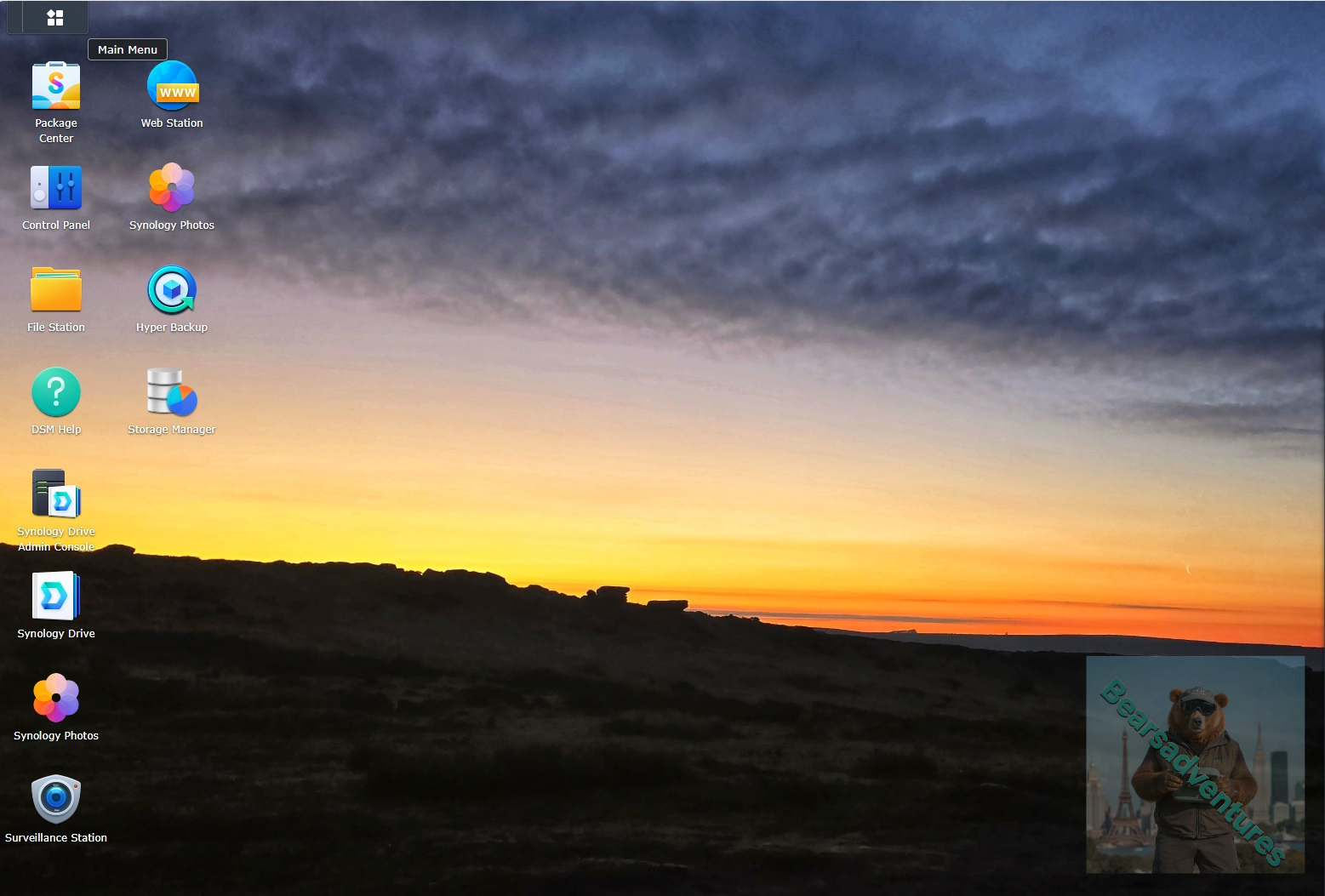

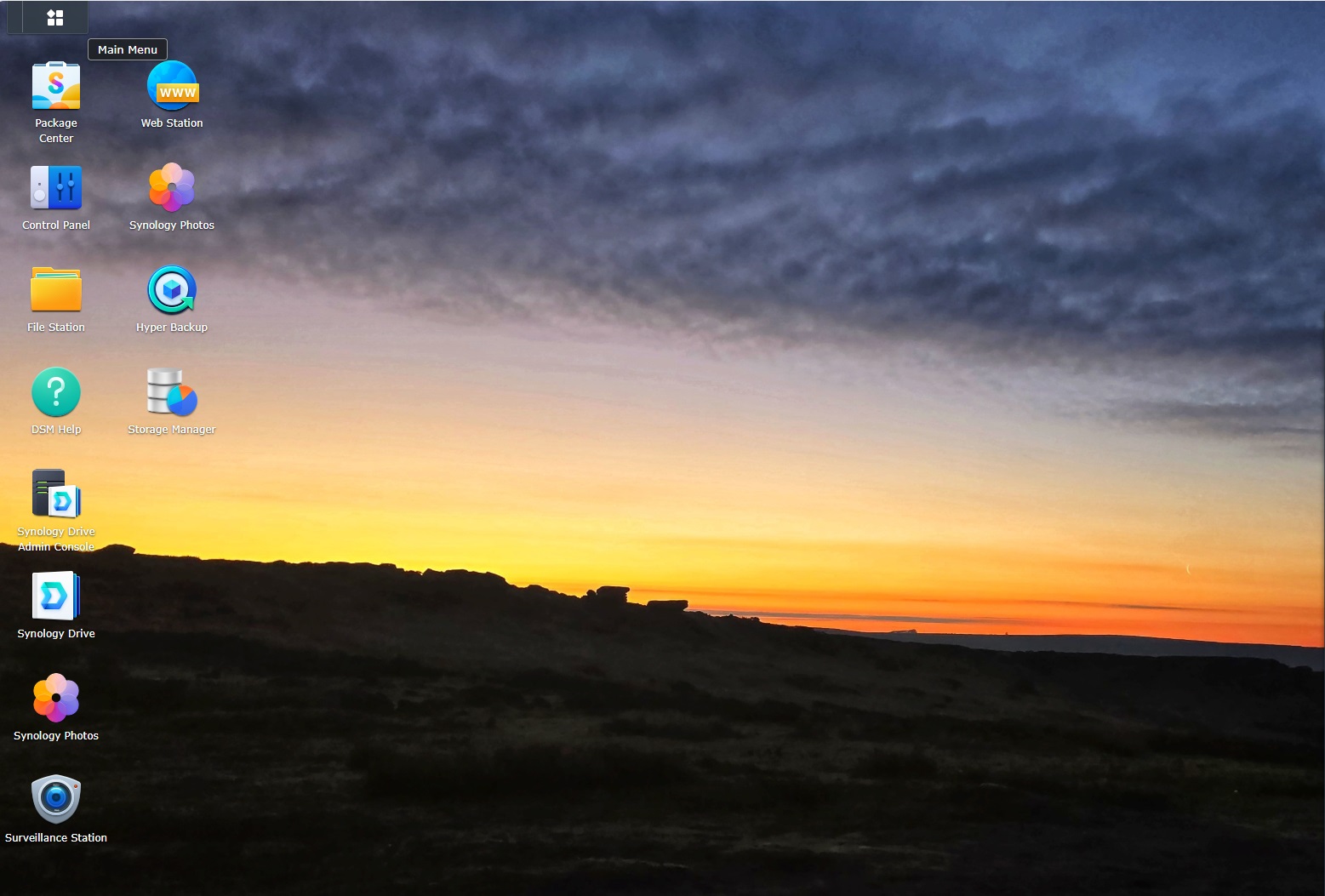

Select Main menu or the Package Center shortcut

Step 2

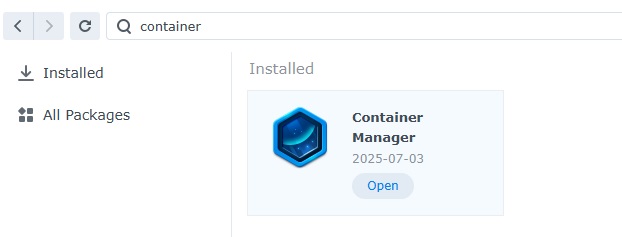

Type in Container in the Search bar and Press enter on your keyboard. Then you will See Container manager like below. in my case i have installed the Container manager already. Select install, wait a few second and then select open.

Step 3

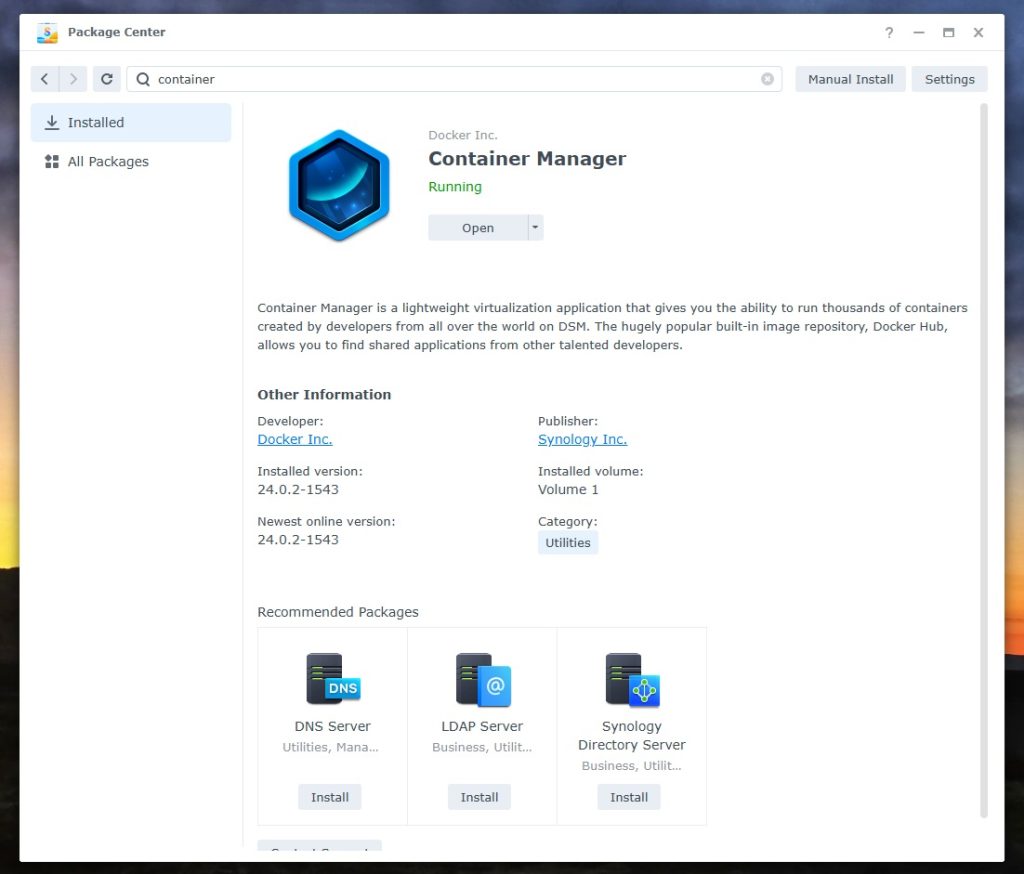

Now you have selected open you should see a screen like below and The Manager will say Running in green. Select open and move on to the next step.

Step 4

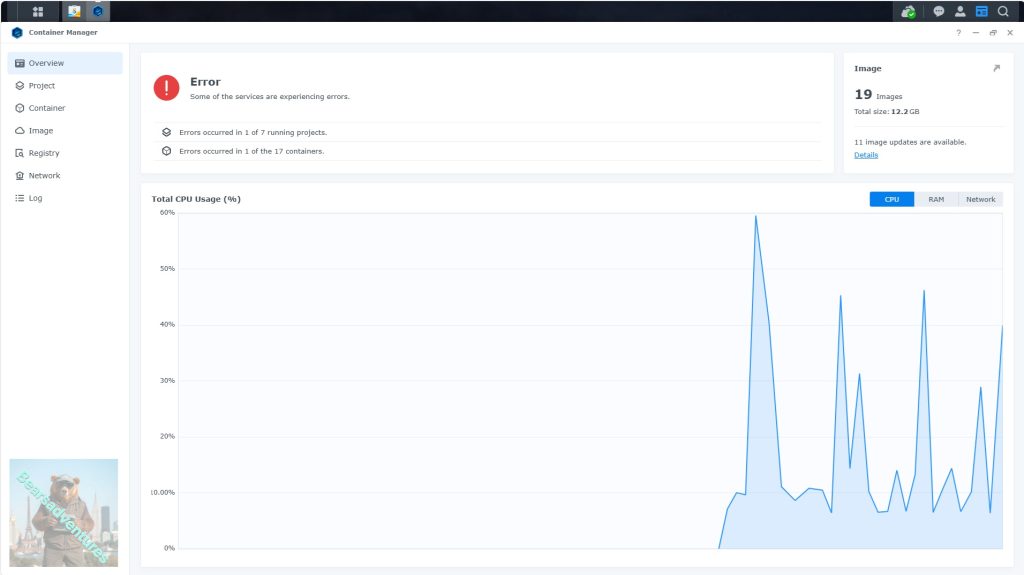

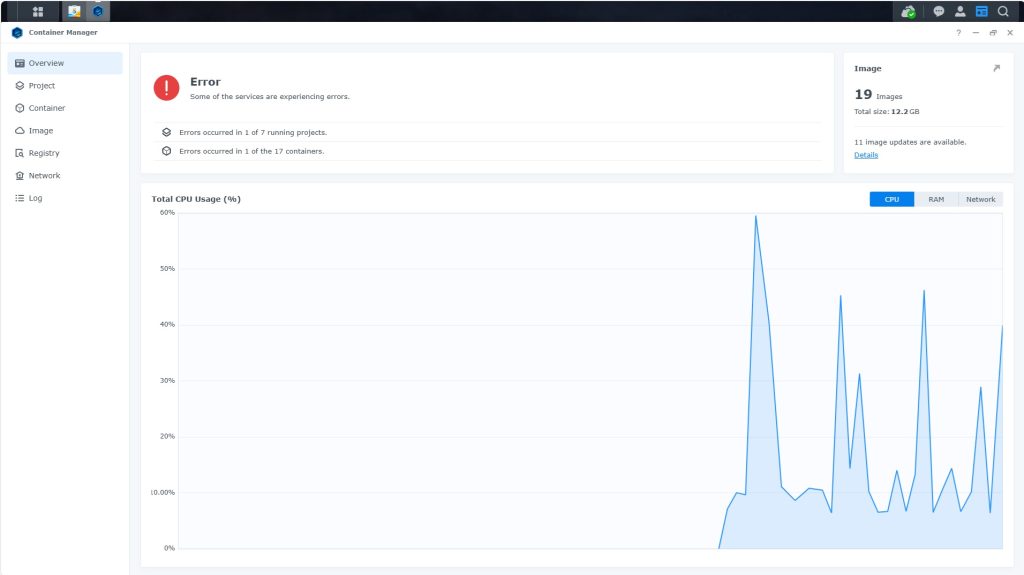

Now you will be Presented with the below. This is the Container manager over view of all your Containers and what’s happening in real time.

Step 5

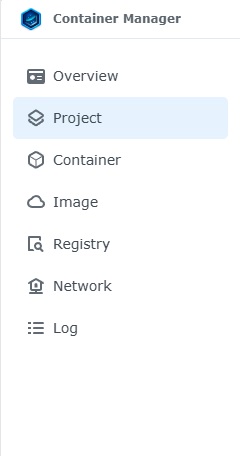

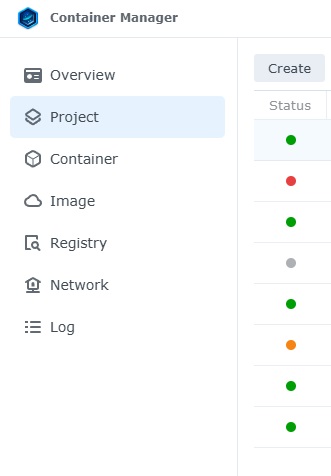

Select project from the menu down the side and then select Create button

Step 6

before we go any thurther we need to ensure we have our folders setup ready for the project.

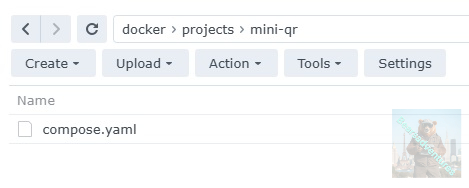

I have a main folder on the Synology system just for docker projects. create the following using filestation

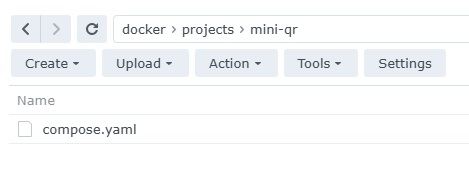

• Mini-QR folder like below

Step 7

now we have created the folders needed for the project we can go ahead and create the project in Container manager

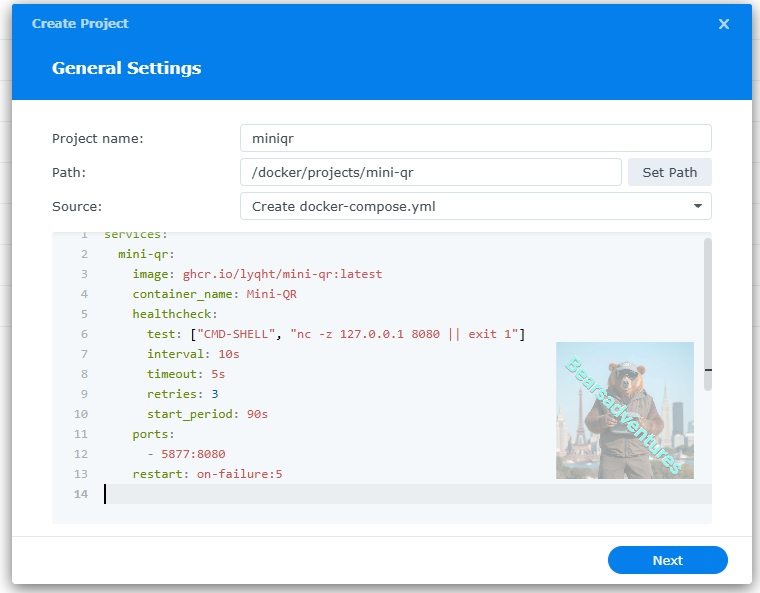

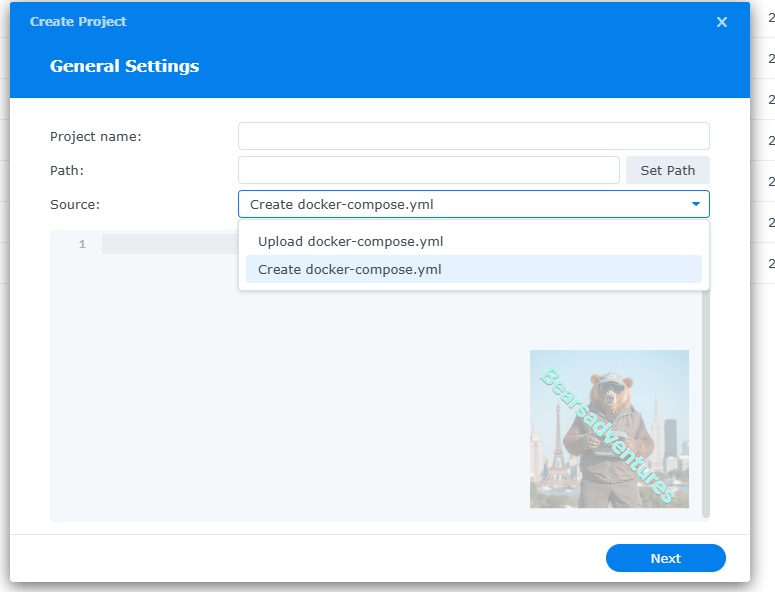

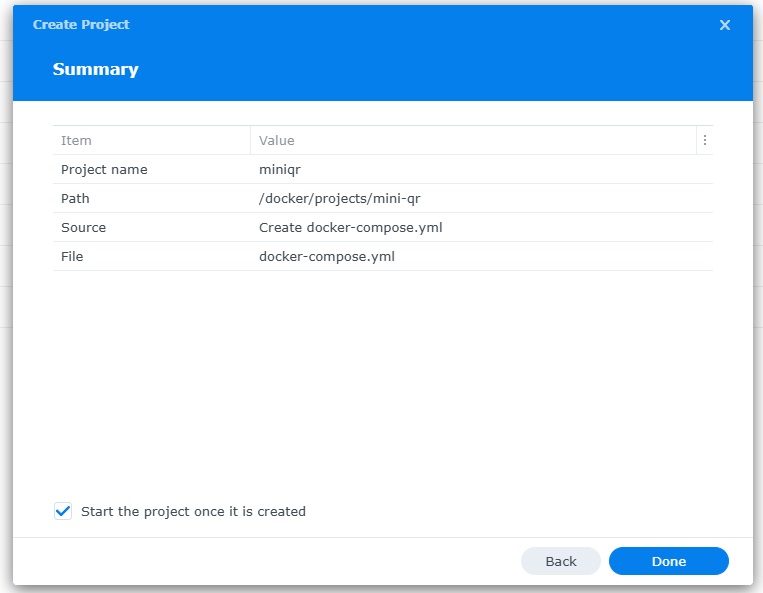

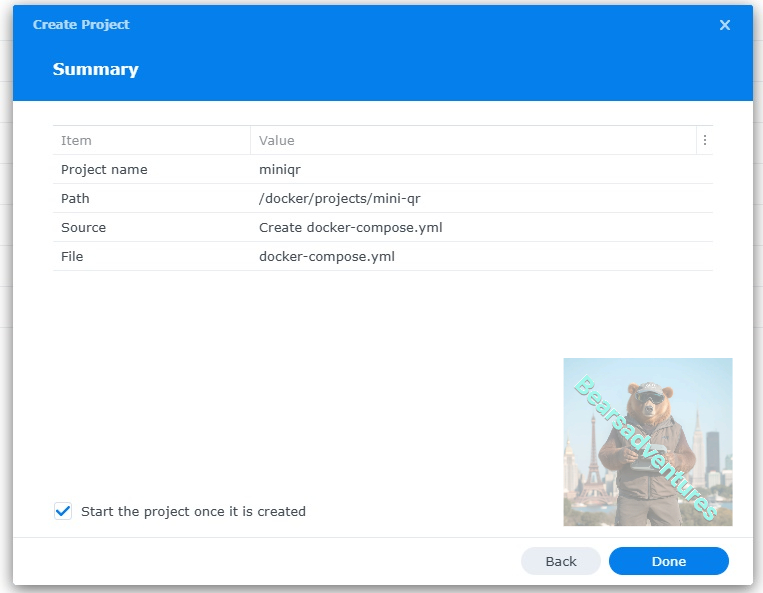

Give the project a name, change source to Create docker-compose.yml and add the path.

See below for before and after the code you will need is below also.

the volume path needs tobe exact or the project will return a fail.

services:
  mini-qr:
    image: ghcr.io/lyqht/mini-qr:latest
    container_name: Mini-QR
    healthcheck:
      test: ["CMD-SHELL", "nc -z 127.0.0.1 8080 || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 3
      start_period: 90s
    ports:
      - 5877:8080
    restart: on-failure:5

press next when you are happy with the code

Step 8

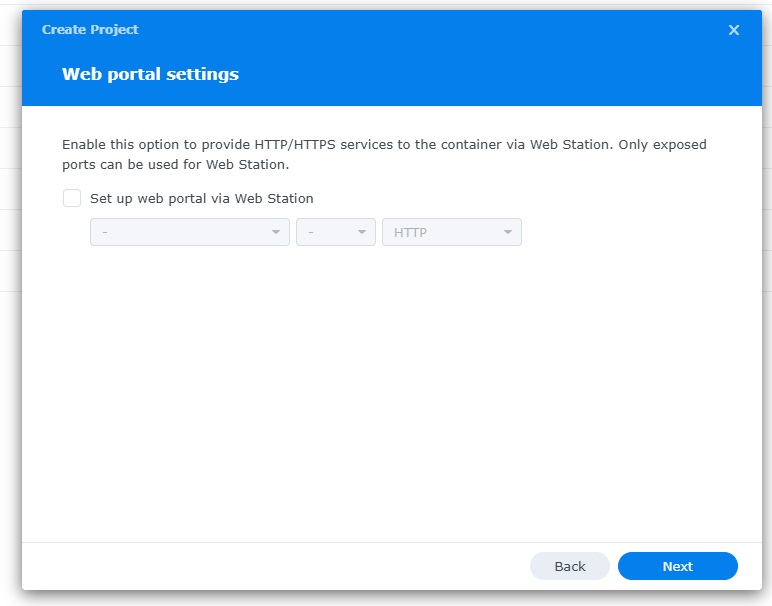

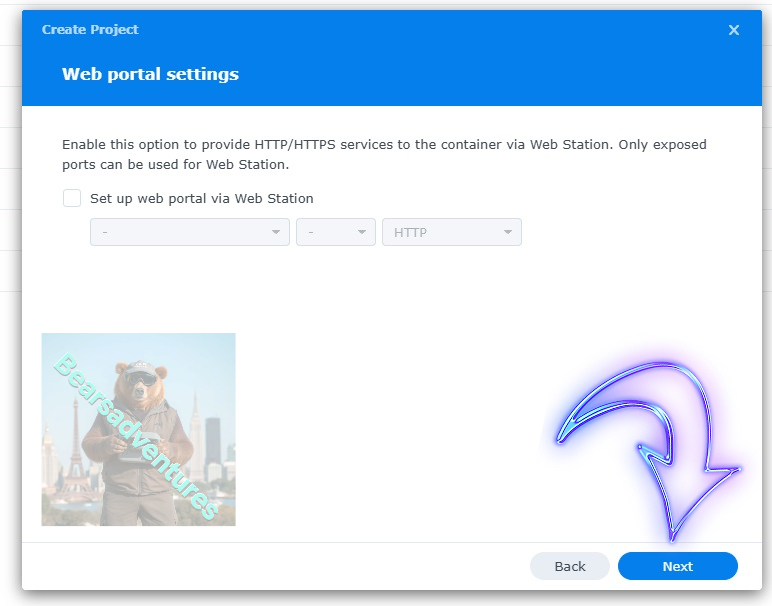

setup a web portal if you like . I would not advise it. and press next

Step 9

Step 10

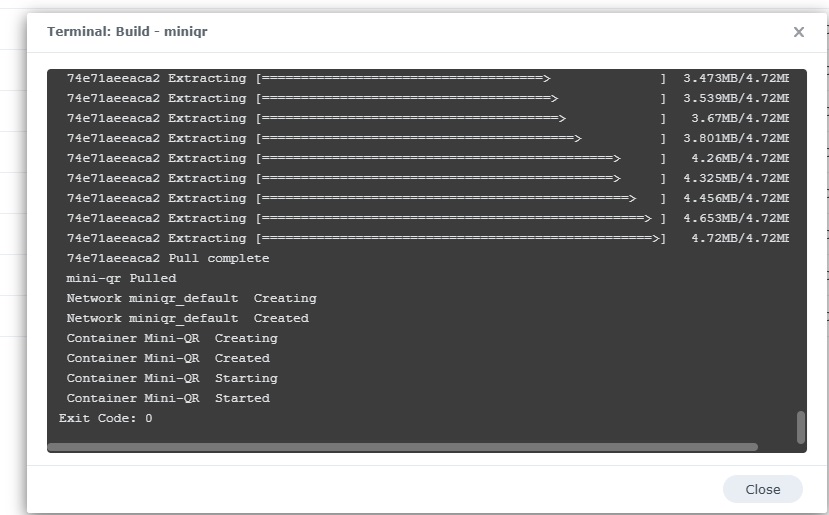

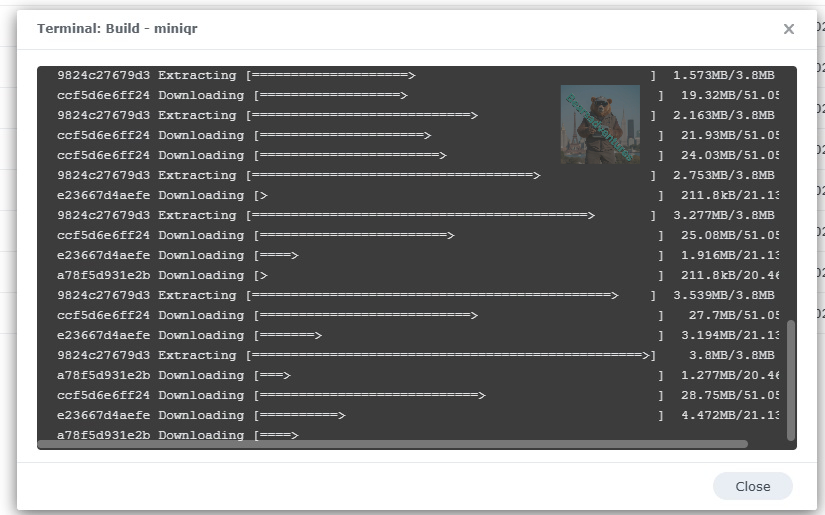

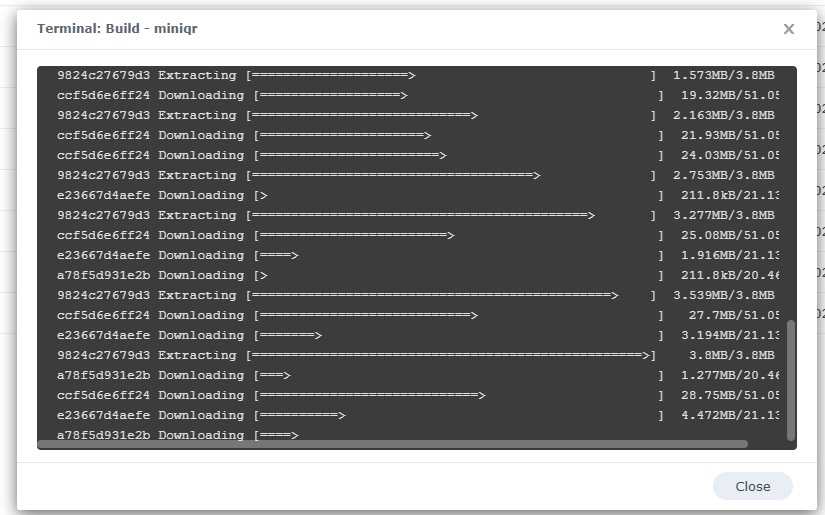

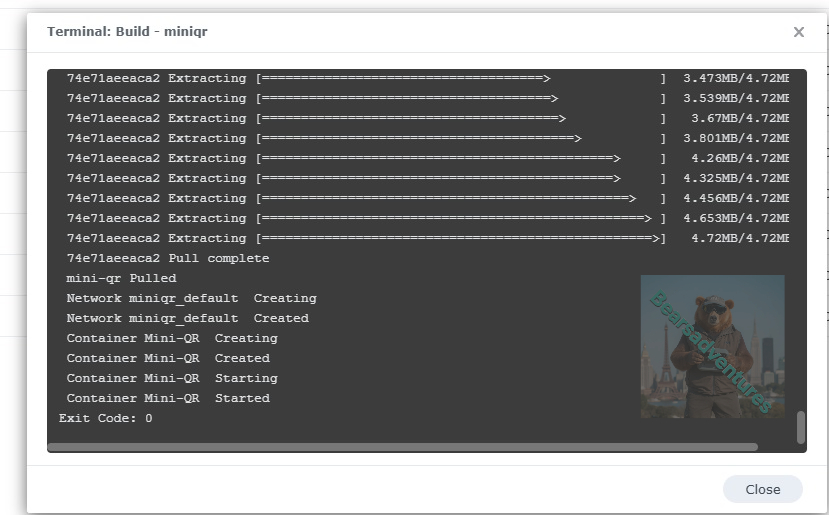

If you have a Exit Code of 0 like i have below then you are done. project created. if you have a Exit code 1 you have a error and need to visit the code again and trouble shoot.

Thats it you are done.

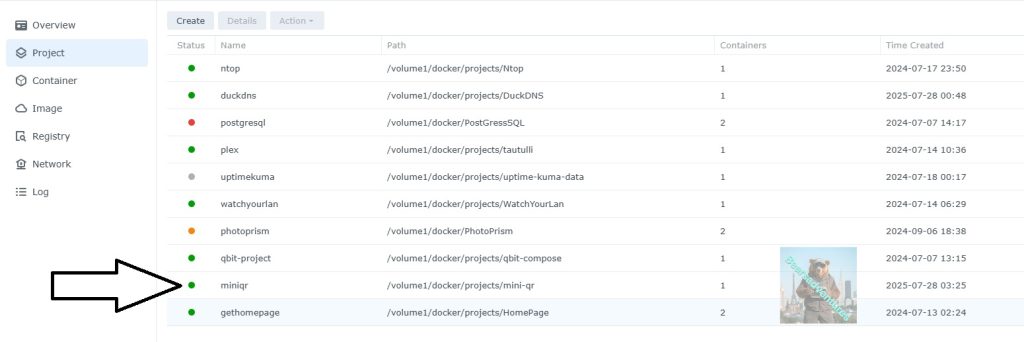

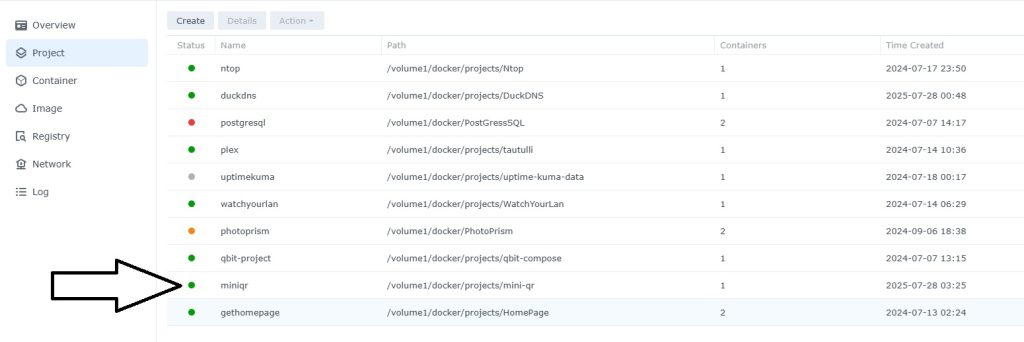

One last thing you can check to see if the docker is Green and showing no Errors, todo that just goto Container manager and on the left select Projects and Mini-QR will be there Status Colum should be green if not you will need to trouble shoot.

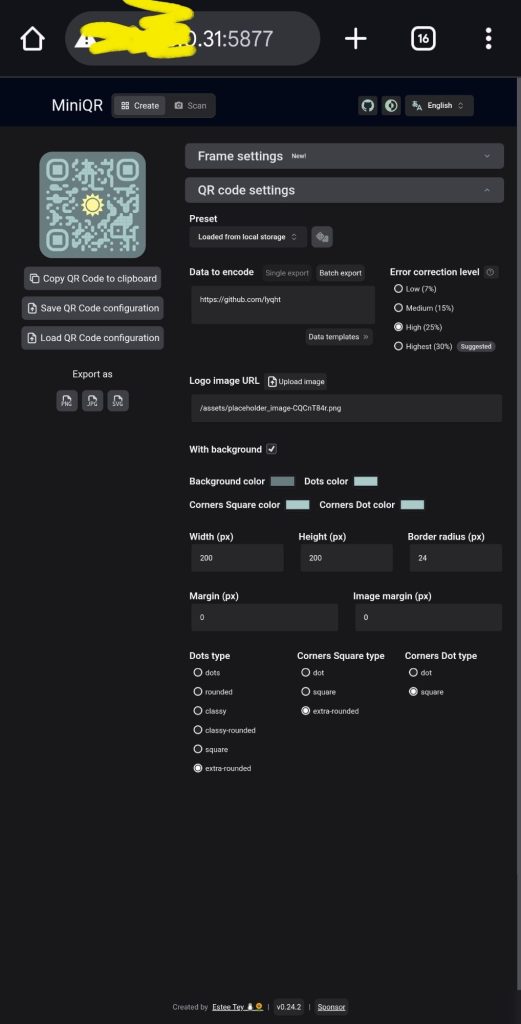

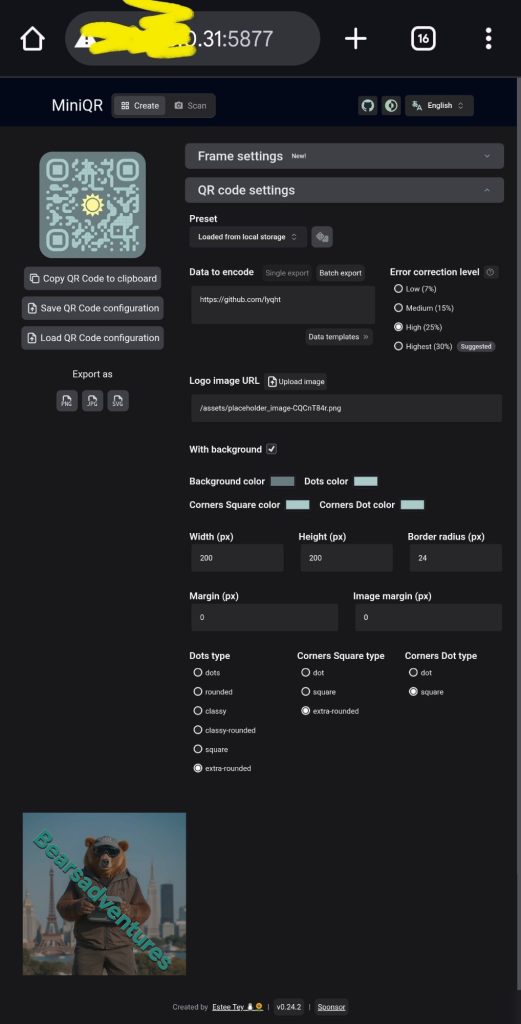

Lets see if the container will work on your phone, open your browser and type in http://Synology-ip-address:5877 Generate your unique QR code. Follow the instructions in the image below
